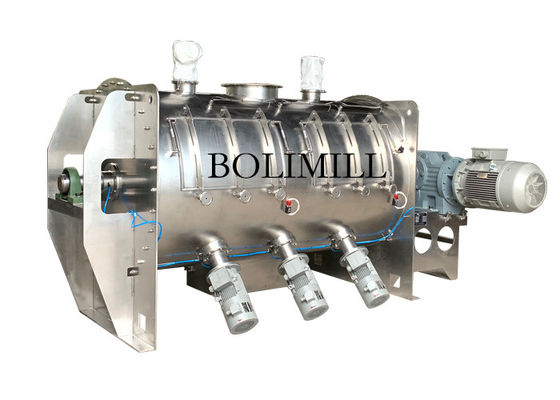

Chemical Powder 200L 24Rpm/Min Ribbon Blender Machine

큰 이미지 : Chemical Powder 200L 24Rpm/Min Ribbon Blender Machine

제품 상세 정보:

원래 장소:	장쑤 성, 중국
브랜드 이름:	BOLIMILL
인증:	ISO CE
모델 번호:	JB-300

결제 및 배송 조건:

최소 주문 수량:	>=1 세트
가격:	negotiable
포장 세부 사항:	목제 상자
배달 시간:	30 작업 일

접촉

상세 제품 설명

이름:	화학적 분체 믹서 분체 혼합기 리본 블렌더	핵심어:	수평한 쟁기 믹서
전압:	주문을 받아서 만드는	보장:	1 년
사용법:	액체를 가진 식품 산업, 화학 공업, 섞는 분말, 섞는 기계, 또는 섞는 분말	모터:	ABB, 시멘스, 중국 상표 등
강조하다:	24Rpm/Min 리본 블렌더 Machine , 200L 리본 블렌더 Machine , 200L 리본 믹서 기계

Chemical Powder Mixer Powder Mixing Machine Ribbon Blender

Plough shear or sloping blade is set on the main shaft. When the plough shear mixer is on operation, the special mixing structure makes the material to be mixed continuously! The dead corner is absolutely avoided under the simultaneous radial and longitudinal movement, thus high accuracy mixing effect is achieved!

Our plough shear mixer can be equipped with heating or cooling jacket if temperature control is required. Besides, all of our powder mixer can tolerate about 10% liquid additives! We will add spraying or atomizing unit inside the tank!

Chemical Powder 200L 24Rpm/Min Ribbon Blender Machine 0

Technical Data

Model	Main Structural Dimensions(mm)			Volume	Max loading	Speed	Machine weight	power1	power2
Model	L	W	H	L	KG	Rpm/min	Kg	KW	KW
JB-100	1400	580	1000	100	50	24	220	2.2	0.75
JB-150	2000	630	1150	150	75	24	300	3	0.75
JB-200	2300	750	1250	200	100	24	400	4	1.1
JB-300	2700	850	1350	300	150	24	600	5.5	1.5
JB-500	2750	800	1400	500	250	24	800	7.5	2.2
JB-1000	3350	1100	1550	1000	500	24	1400	15	3

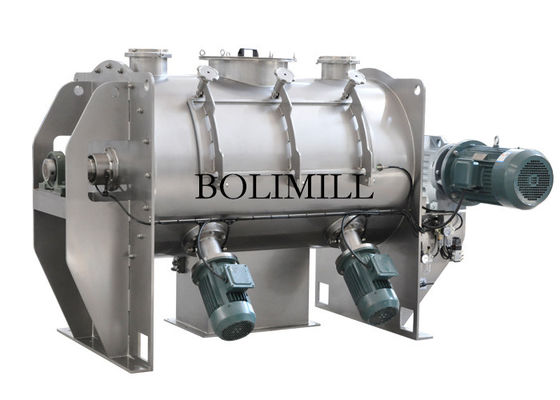

Chemical Powder 200L 24Rpm/Min Ribbon Blender Machine 1

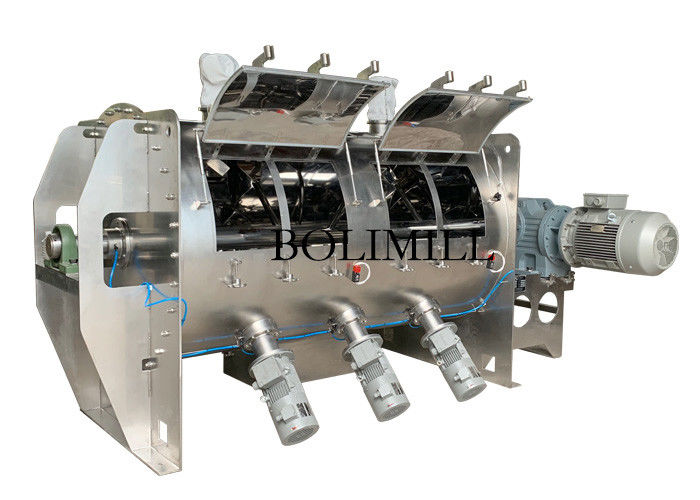

Chemical Powder 200L 24Rpm/Min Ribbon Blender Machine 2

Standard configuration

1. Drive Unit: Cycloid reducer or gear reducer

2. Motor brand: Siemens (made in China)

3. Gear box brand: Chinese Famous brand (Huaxing)

4. Bearings: Chinese Famous brand

5. Discharging valve: pneumatic flap valve (no dead angle when mixing).

6. Main Shaft Seal

Air-purged seal and stuffing seal for powder material

Mechanical seal for liquid material

7. Voltage and Hz

380V 3Phases 50hz or in accordance with it in the using place

8. Top Cover

Could be fully open so as to clean, with safety grid and limit switch to make sure safety operation for workers

9. Normal duty type: start the mixer first and then load the material

10. Surface treatment: painting, polishing, passivation, blasting, acid-picking and so on

11. Packing in pallet or wooden case

Why choose us?

* 24 hours online email service.

* Our principle: high honest, quality,service

* We are a big factory with rich experience and technology, engaged in the machinery industry for over 13 years. Best quality controls best services.

Why your machine similar with other supplier?

We are manufacturer and had been in this industry for many years. We design machines by ourselves with advanced technology. Appearance just a part of machine, Service and quality is more important than it.

I'm new in our industry, but I'm planning to set up a factory, What can I do?

We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.

What kind of machines can you supply to customer?

We could offer various kinds of machines and whole production line.

Our company specialized in making grinding machines,mixers and sifters....

If you want to know about our machines ,you can contact me at any time.
